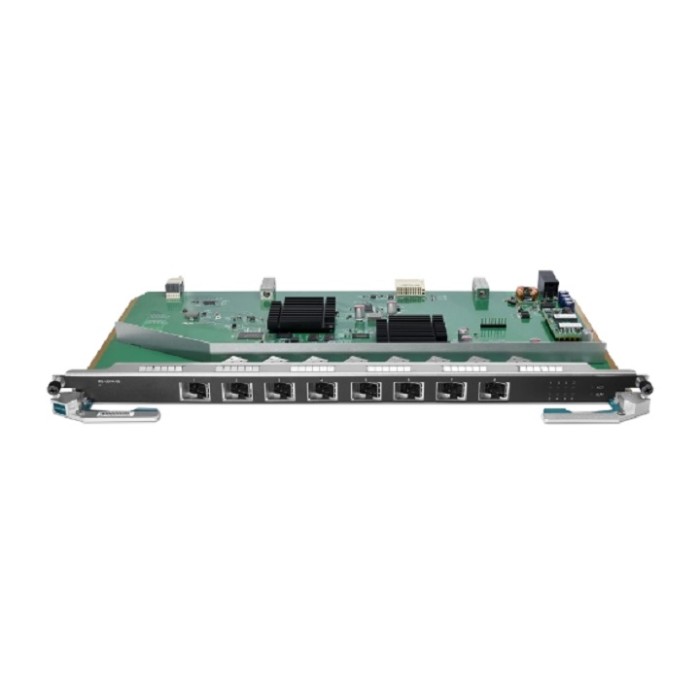

Tp-Link DS-LGPA-08 DeltaStream Chassis Optical Line Terminal 8 GPON Service Board
- 8× GPON Ports
- High Scalability
- Flexible Deployment
- L2 & Advanced L3 Functions
- Centralized Management
Tp-Link DS-LGPA-08 DeltaStream Chassis Optical Line Terminal 8 GPON Service Board
HARDWARE FEATURES
Interface
- 8× GPON Ports
Dimensions ( W x D x H )
- 15.4 x 10.1 x 0.9 in (390.8mm x 257.5mm x 22.5 mm)
Power Consumption
- Max. 30W
Power Supply
- Power Supplies: via DS-PSUA Module
- DC: -38.4V~-57.6V
Hot Swappable
- Yes
SOFTWARE FEATURES
DHCP
- DHCP Server
- DHCP Relay
Security
- ACL
- 802.1x Authentication
OMCI
- Standard OMCI Management Supported
ONU Authentication
- ONU Auto Authentication
ONU Security
- Rouge ONU Detection and Isolation
Multi-Service
- Multi-Service Traffic Identify and Rate Limit
QOS
- IEEE 802.1p/DSCP QOS
- Voice VLAN
- Auto VoIP
Routing
- Static Routing
Multicast
- IGMP Snooping
- MLD Snooping
Centralized Management
- Large-Scale Devices Management
- OLT Batch Configure, Upgrade, Reboot
- Multi-Site Management
- Intelligent Network Monitoring
- Real-time Network Overview
OTHERS
Certification
- CE,FCC
Package Contents
- GPON Service Board DS-LGPA-08
Environment
- Operating Temperature: 0C–50C (32F–122F)
- Storage Temperature: -40C–70C (-40F–158F)
- Operating Humidity: 10%–90% non-condensing
- Storage Humidity: 5%–90% non-condensing
GPON PORT ATTRIBUTE
Transmission distance
- 20 km
Data rate
- GPON
- Downstream: 2.5 Gbps, Upstream: 1.25 Gbps
- Per Port
Wavelength
- Tx: 1490 nm
- Rx: 1310 nm
Max. Splitting Ratio
- 1:128 for GPON
